Manufacturer: XFX
Model Number:RX-68XTALFD9
Product Name: AMD Radeon™ RX 6800 XT

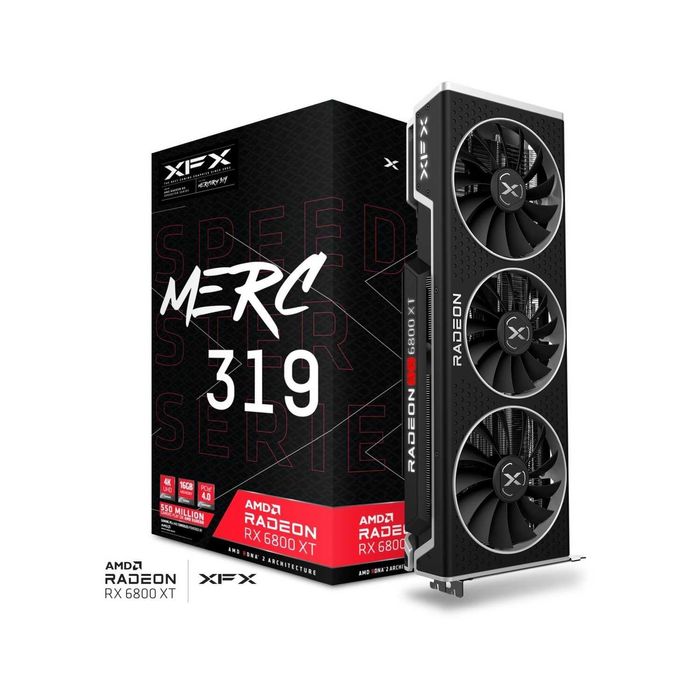

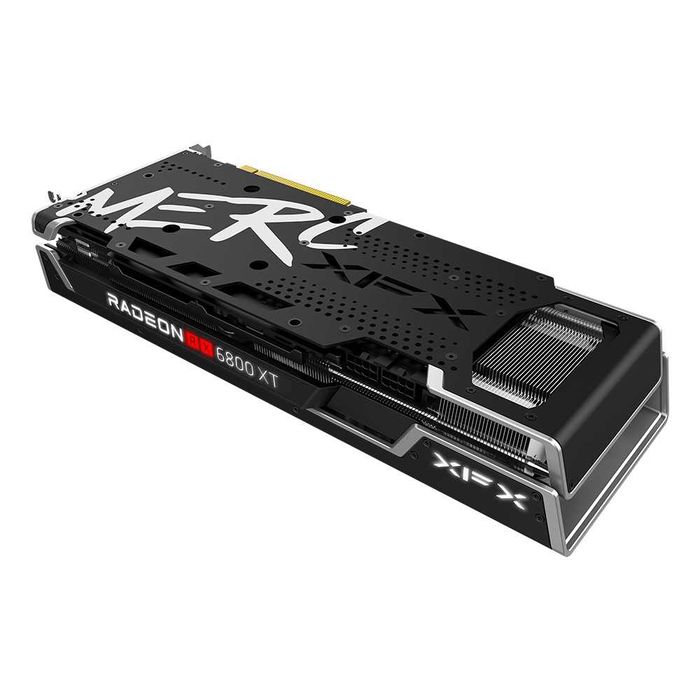

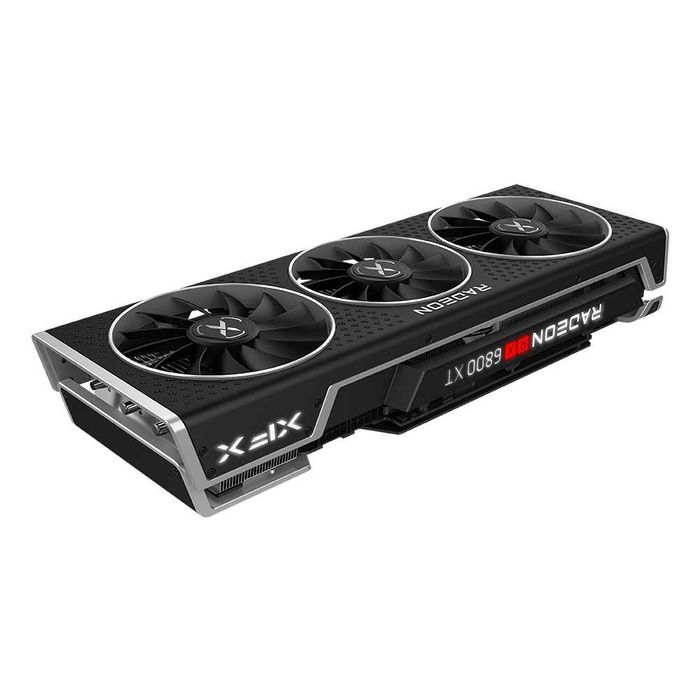

Short Description : XFX SPEEDSTER MERC319 AMD Radeon™ RX 6800 XT CORE Gaming Graphics Card with 16GB GDDR6, AMD RDNA™ 2

Specifications
‍Bus Type: PCI-E 4.0

‍
Clock Speeds:
Base clock Up to: 1825 MHz
Game Clock Up To: 2015 MHz*
Boost clock Up to: 2250 MHz**

Stream Processors: 4608
Memory Bus: 256bit
Memory Clock: 16 Gbps
Memory Size: 16 GB
Memory Type: GDDR6
Card Profile: 2.7 Slot
Thermal Solution: 3 Fan

*"Game Clock" is the expected GPU clock when running in typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

**"Boost Clock" is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

Outputs
‍DisplayPort: 1.4 with DSC
HDMI™: 2.1 VRR and FRL
Output : Display Port 3
Output: HDMI 1

‍Requirements
‍External Power: 2x PCI-E 8 pin connections
Minimum Power Supply Requirement: 750 watt
XFX Recommended Power Supply: XFX 750W PSU

‍Certifications
RoHS

Estimated Dimensions & Weights
‍Card Dimension (cm) 34 x 13.8 x 5.4
Card Dimension (inch) 13.39 x 5.43 x 2.13
Master Carton Dimensions (cm) 46 x 39.5 x 47.5
Master Carton Dimensions (inch) 18.11 x 15.55 x 18.7
Master Carton Weight (Kg) 14.75
Master Carton Weight (lb) 23.45
Package Dimensions (cm) 44.5 x 23.5 x 12.5
Package Dimensions (inch) 17.51 x 9.25 x 4.92
Package Weight (Kg) 2.22
Package Weight (lb) 4.88
Units/Carton 6

Technologies
AMD RDNA™ 2 Architecture
DirectX® 12 Ultimate
Hardware Raytracing
FidelityFX
Radeon Anti-Lag
Microsoft® Windows® 10 Support
Microsoft® DirectX™ 12 Support
7nm Technology
GDDR6 Memory
PCI® Express 4.0 Support
AMD FreeSync™ Technology*
DisplayPort™ 1.4 with DSC
HDMI™ 2.1 VRR
Video Streaming up to 8K
AMD FidelityFX*
Radeon™ Image Sharpening*
Radeon™ Anti-Lag*
Radeon™ Software
Game Driver Optimizations
OpenGL Support
OpenCL Support
‍
* Not compatible with Windows 7. For more information on Radeon technologies, visit: AMD.com/gamingdetails

Other Features
Advanced 7nm GPU
PCI Express 4.0 Support
Radeon Image Sharpening
FidelityFX
Radeon Anti-Lag
Microsoft® Windows® 10 Support
Microsoft® DirectX™ 12 Support
7nm Technology
AMD Virtual Super Resolution (VSR)
AMD Relive
AMD FreeSync 2 HDR
AMD Frame Rate Target Control (FRTC)
AMD Eyefinity multi-display technology
AMD Radeon Adrenalin Software
AMD WattMan
Displayport 1.4 w/ DSC
Dolby TrueHD and DTS-HD Master Audio Support
OpenGL Support
OpenCL Support
