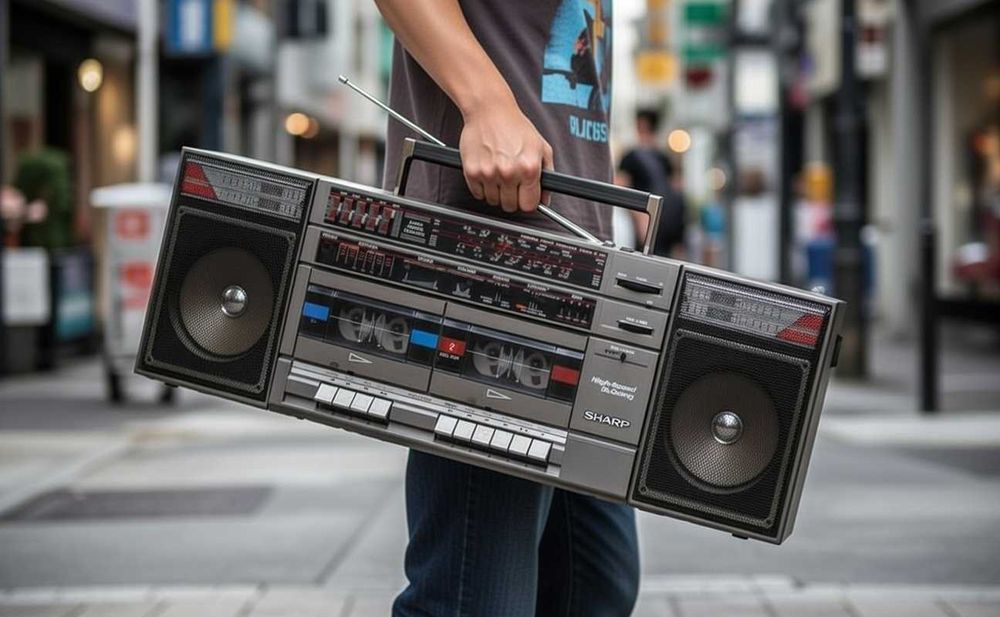

Достаточно удачная серия у Sharp. Несмотря на 12 см динамики и пищалки, конструкторам удалось получить приличное звучание, выжав максимум из двухполосной акустики. Приличное не в плане идеала, а просто добились музыкальности, которое нравится широкому кругу любителей аудио. Данный аппарат покупался в «Берёзке» за 533 чека в 1986 году.

Год начала выпуска: 1985
Регион: Азия

General
Power source:
AC 110 — 127V and
220-240V, 50/60HZ
DC 12V (UM/SUM-1 or R20 type x 8)
Output power:
PMPO. 36W(18W+18W)
(AC operation)
MPO. 18W(9W + 9W) (AC operation)
RMS. 7.6W
(3.8W + 3.8W) (DC operation, 10% distortion)
Semiconductors: 8 ICs
17 Transistors 21 Diodes 6 LEDs
Dimensions:
Width. 622mm (24-1/2“)
Height. 200mm (7-7/8“)
Depth. 146mm (5-3/4“)
Weight: 4.6 kg (10.1 lbs.) without
batteries
Tape Recorder

Tape: Compact cassette tape
Frequency response:
80Hz-10,000Hz
Signal/noise ratio: 55 dB (Deck 1, playback) 50 dB (Deck 2, normal tape recording)
Wow and flutter: 0.12% (WRMS)
Input impedance: External mic: 600 ohms Line in. 47k ohms
Loaded impedance: Headphones. 8-32 ohms External speakers. 4—8 ohms
Radio
Frequency range:

FM. 87.6—108MHz
SW1 2.3-7.3MHz
SW2. 7.3-22MHz
AM. 526.5-1,606.5kHz

Speaker
Speakers:
12cm (4-3/4“) woofer x 2
Horn type tweeter x 2
Impedance: 4 ohms
Maximum power handling capacity: 6.5W (maximum)

Sharp'ning juda muvaffaqiyatli seriyasi. 12 sm dinamiklar va pishchalklarga qaramay, konstruktorlar ikki polosali akustikadan maksimum darajada foydalanib, munosib ovozga erishishga muvaffaq bo'lishgan. Munosib degani ideal ma'nosida emas, balki shunchaki keng doiradagi audio ixlosmandlariga yoqadigan musiqiylikka erishilgan. Ushbu apparat 1986 yilda "Berezka" do'konidan 533 chekka sotib olingan.
Ishlab chiqarishni boshlangan yili: 1985
Mintaqa: Osiyo
Umumiy
Quvvat manbai:
AC 110 — 127V va
220-240V, 50/60HZ
DC 12V (UM/SUM-1 yoki R20 tipidagi x 8)
Chiqish quvvati:
PMPO. 36 Vt (18 Vt + 18 Vt)
(AC rejimi)
MPO. 18 Vt (9 Vt + 9 Vt) (AC rejimi)
RMS. 7.6 Vt
(3.8 Vt + 3.8 Vt) (DC rejimi, 10% buzilishda)
Yarimo'tkazgichlar: 8 ta IC (integral mikrosxema)
17 ta tranzistor, 21 ta diod, 6 ta LED
O'lchamlari:
Kengligi. 622 mm (24-1/2“)
Bo'yi. 200 mm (7-7/8“)
Chuqurligi. 146 mm (5-3/4“)
Og'irligi: 4.6 kg (10.1 lbs.) batareyalarsiz
Magnitofon
Lenta: Kompakt kasseta lentasi
Chastota diapazoni:
80Hz-10,000Hz
Signal/shovqin nisbati: 55 dB (Deck 1, ijro etish) 50 dB (Deck 2, oddiy lentaga yozish)
Wow va flutter (tebranish): 0.12% (WRMS)
Kirish impedansi: Tashqi mikrofon: 600 ohms Line in. 47k ohms
Yuklangan impedans: Naushniklar. 8-32 ohms Tashqi dinamiklar. 4—8 ohms
Radio
Chastota diapazoni:
FM. 87.6—108MGts
SW1 2.3-7.3MGts
SW2. 7.3-22MGts
AM. 526.5-1,606.5kGts
Dinamik
Dinamiklar:
12 sm (4-3/4“) vufеr x 2
Gorn tipidagi tviter x 2
Impedans: 4 ohms
Maksimal quvvatni qabul qilish qobiliyati: 6.5 Vt (maksimal)
