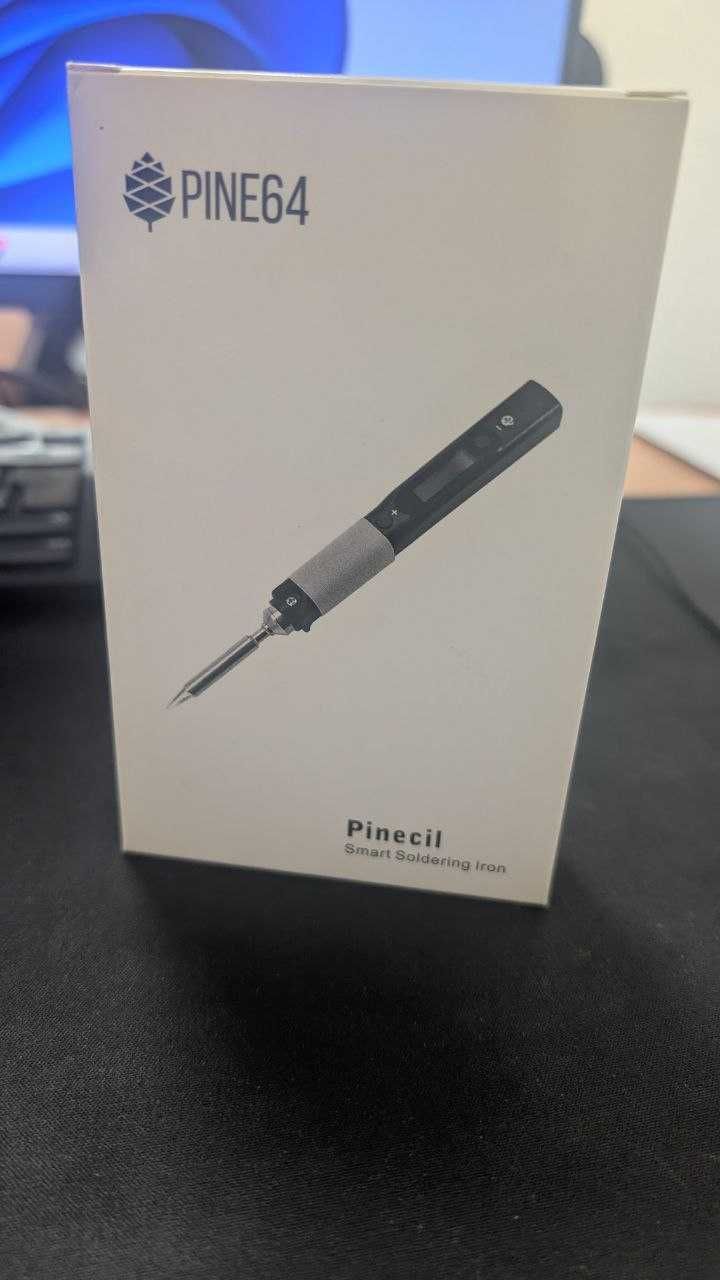

PACKAGE Dimensions: 15cm x 9cm x 2.2cm
Weight: 80 grams
BODY Dimensions: 155mm with solder tip / 103mm without solder tip x 12.8mm x 16.2mm
Weight: 28g with solder tip / 18g without solder tip
Build: Plastic with metal clip (Handle)
Color: Black (case)/ Green (Sleeve)
PLATFORM
OS: Ralim’s IronOS build
Chipset: Bouffalo BL-706
CPU: 32-bit RV32IMAFC RISC-V “SiFive E24 Core” 144 MHz
DISPLAY
Type: OLED White Colour Monochrome Display
Size: 0.69 inches
Resolution: 96x16pixels
MEMORY
Internal Flash Memory: 192KB
System Memory: 132KB SRAM
Expansion: None
POWER PORTS
USB type C: PD and QC 3.0 12V-20V 3A
Barrel Jack: DC5525, 12V-24V DC 3A
TIP
Type B2
Length: 86mm
Weight: 8.2g
FEATURES
Capable received power from either USB-C port or barrel jack.
GPIO break-out thru USB-C port
CERTIFICATION
FCC
CE RED
ROHS

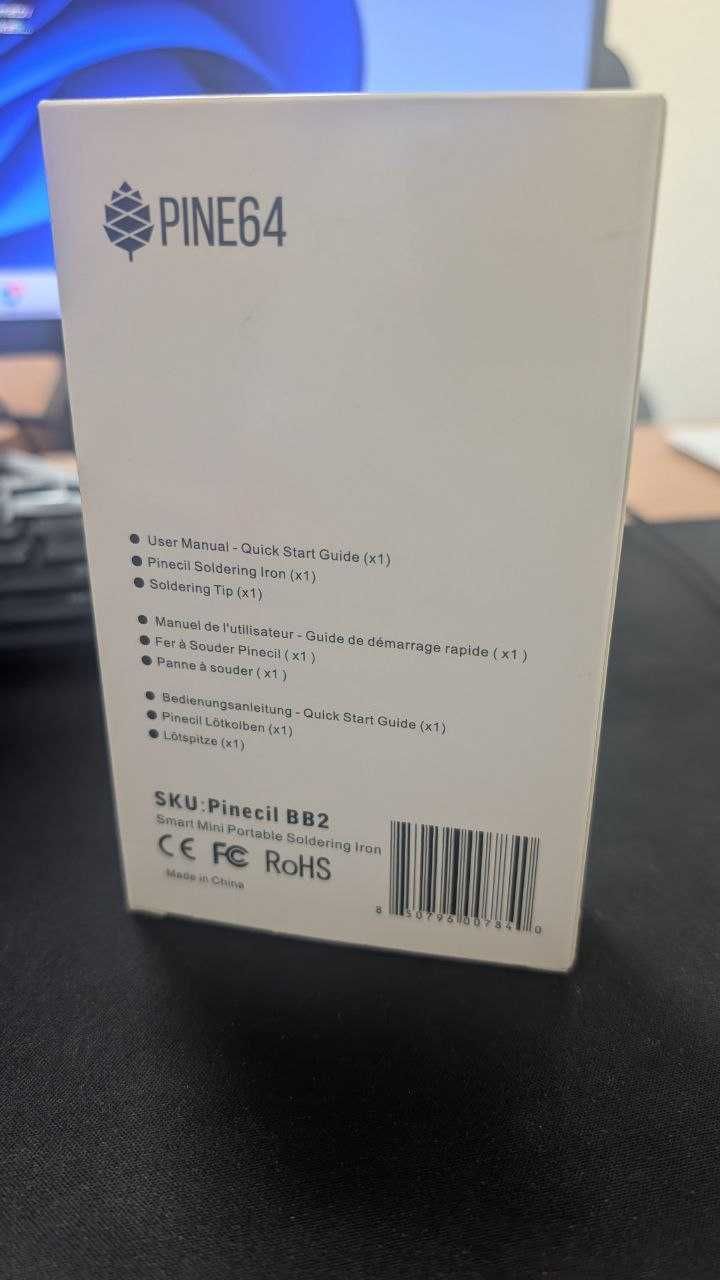

PACKAGE CONTENTS
Pinecil Soldering Iron version 2
ST (Short Tip)-B2 Soldering Tip
