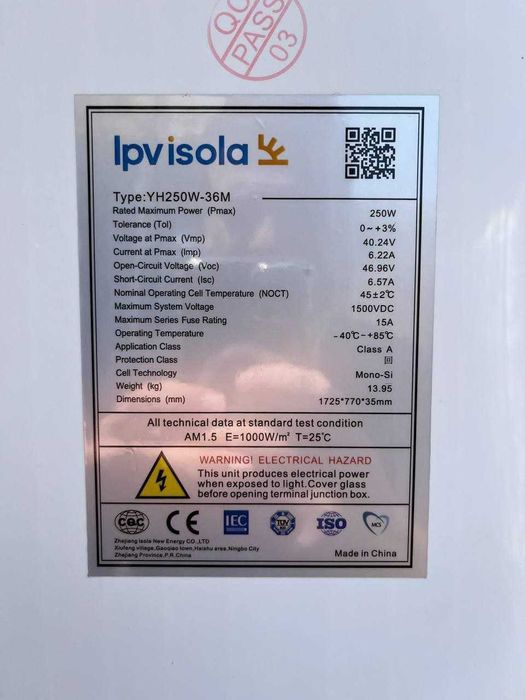

Ipvisola
Type: YH250W-36M
Rated Maximum Power (Pmax)
250W
Tolerance (Tol)
0~ +3%
Voltage at Pmax (Vmp)
40.24V
Current at Pmax (Imp)
6.22A
Open-Circuit Voltage (Voc)
46.96V
Short-Circuit Current (Isc)
6.57A
Nominal Operating Cell Temperature (NOCT)
45±2C
Maximum System Voltage
1500VDC
Maximum Series Fuse Rating
15A
Operating Temperature
- 40°C -+85°C
Application Class
Class A
Protection Class
[]
Cell Technology
Mono-Si
Weight (kg)
13.95
Dimensions (mm)
1725*770*35mm
