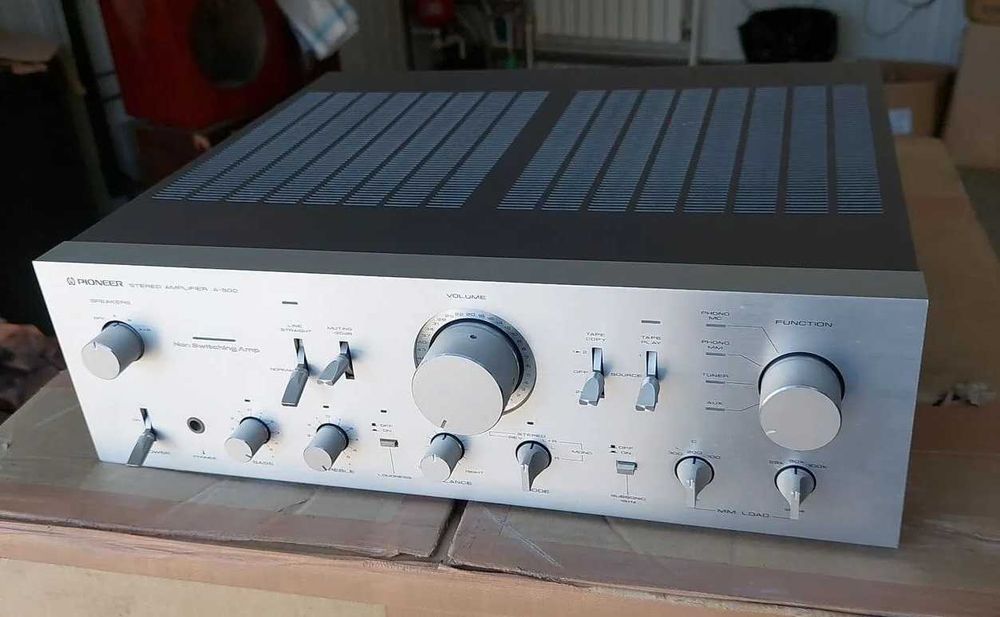

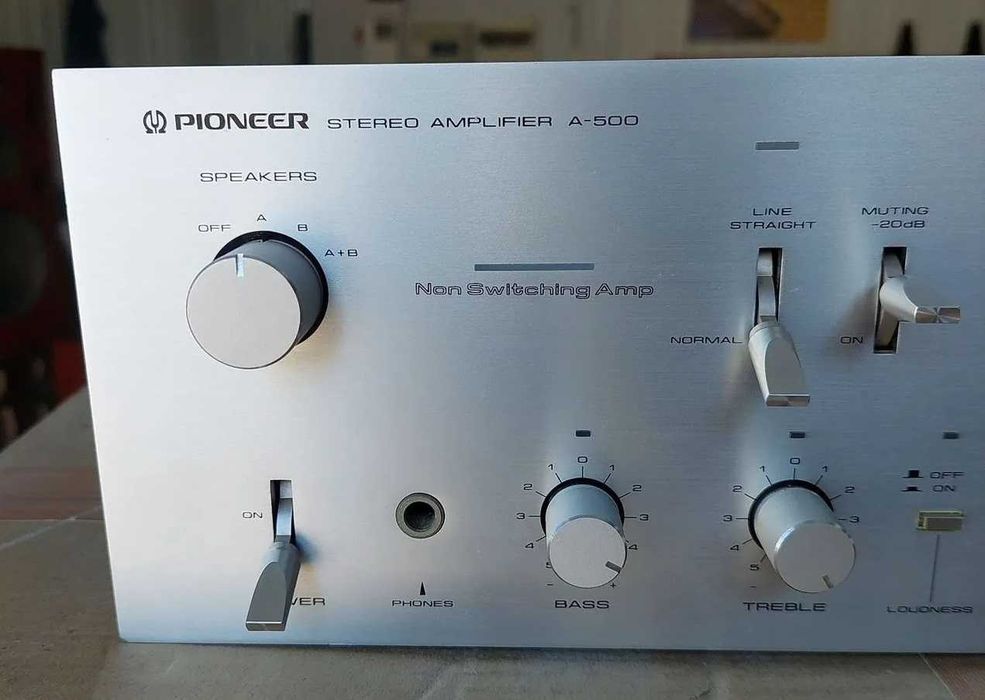

Усилитель Pioneer A-500 практически в идеальном состоянии!
Технические характеристики:
Effective power 80W + 80W (8 Ω, 20 Hz to 20 kHz, both channel drive)
Harmonic distortion factor (20 Hz to 20 kHz) 0.007% (at effective output)
0.005% (8 Ω at 40W output)
Intermodulation distortion factor (50 hz : 7 khz = 4 : 1) 0.007% (at effective output)
0.003% (8 Ω at 40W output)
Output bandwidth 5 Hz ~ 100 kHz (IHF, both channel drive, THD0.05%)
Input Sensitivity / Impedance
Phono MM: 2.5mV/25k Ω, 50k Ω, 100k Ω
Load Capacity : 100 pf, 200 pf, 300 pf
Phono MC: 0.25mV/0.1k Ω
Tuner, Aux, Tape play1, 2 : 150mV/50k Ω
Phono maximum allowable input (1 kHz, THD0.008%) MM:200mV
MC:20mV
Frequency characteristic Phono MM : 20 Hz to 20 kHz ± 0.2 dB
Tuner, Aux, Tape play : 5 hz to 200 khz + 0 to 3 db
Signal-to-noise ratio
(IHF, A-network, short circuit) Phono MM:89dB
Phono MC:73dB
Tuner, Aux, Tape play : 110 dB
Tone control Bass : ± 10 dB (100 Hz)
Treble : ± 10 dB (10 kHz)
Filter Low : 15 Hz, 6dB/oct.
Loudness contour (at Volume-40dB) Low:+6dB(100Hz)
High:+3dB(10kHz)
Attenuator -20dB
Power supply voltage 100 VAC, 50Hz/60Hz
Power consumption (Electrical Appliance and Material Control Law) 230W
External dimensions Width 420x Height 135x Depth 404 mm
Weight 14.1kg
Питание 100вольт! Требуется понижающий трансформатор!
