Key Specs
Chipset Intel W790
CPU Socket LGA 4677
Memory Slots 8x 288-Pin
Memory Support DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800 MT/s
Storage Slots 2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
Expansion Slots 6x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode)
Wi-Fi Yes
Form Factor EEB
CPU
Chipset Intel W790
CPU Socket LGA 4677

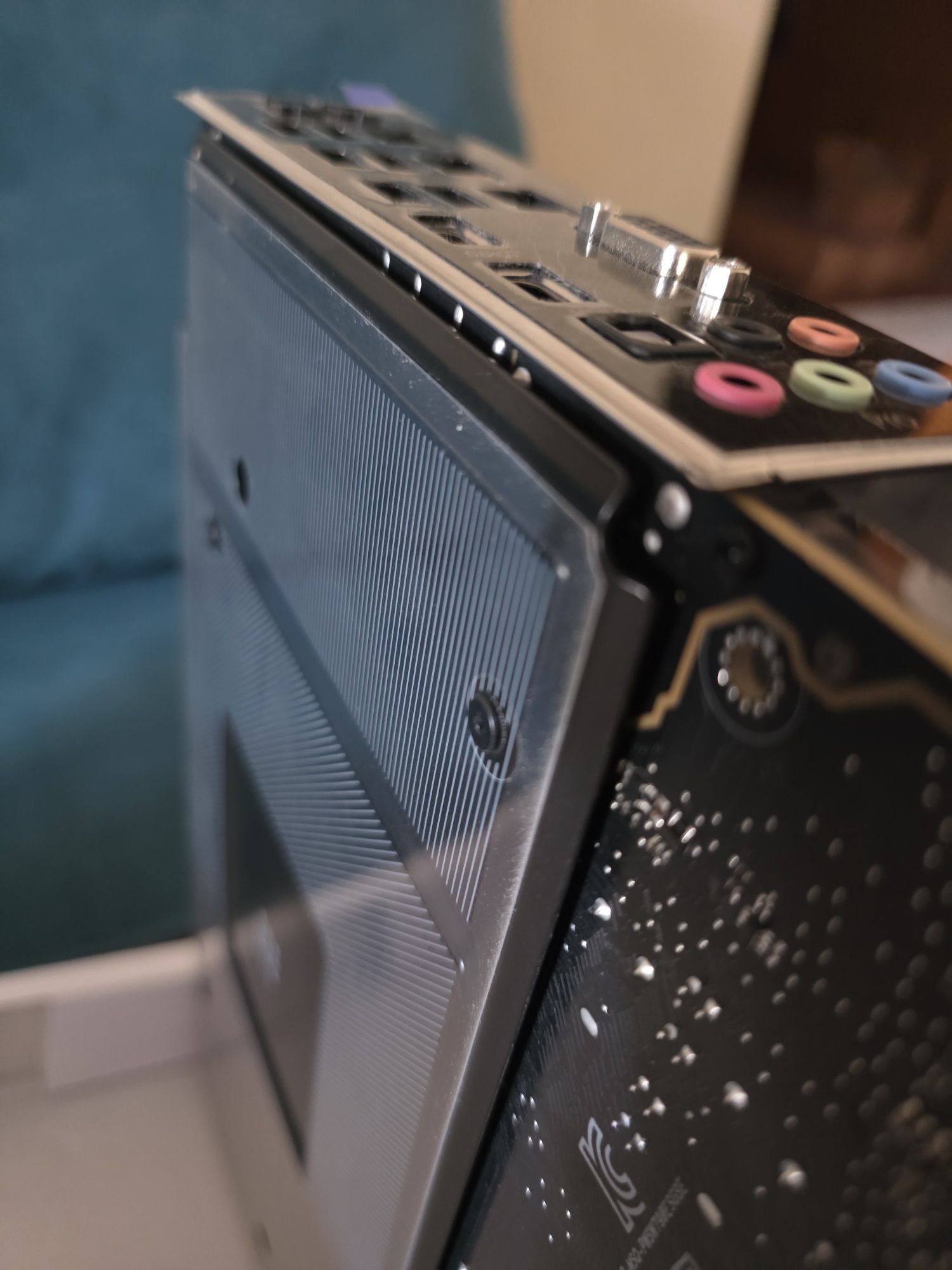

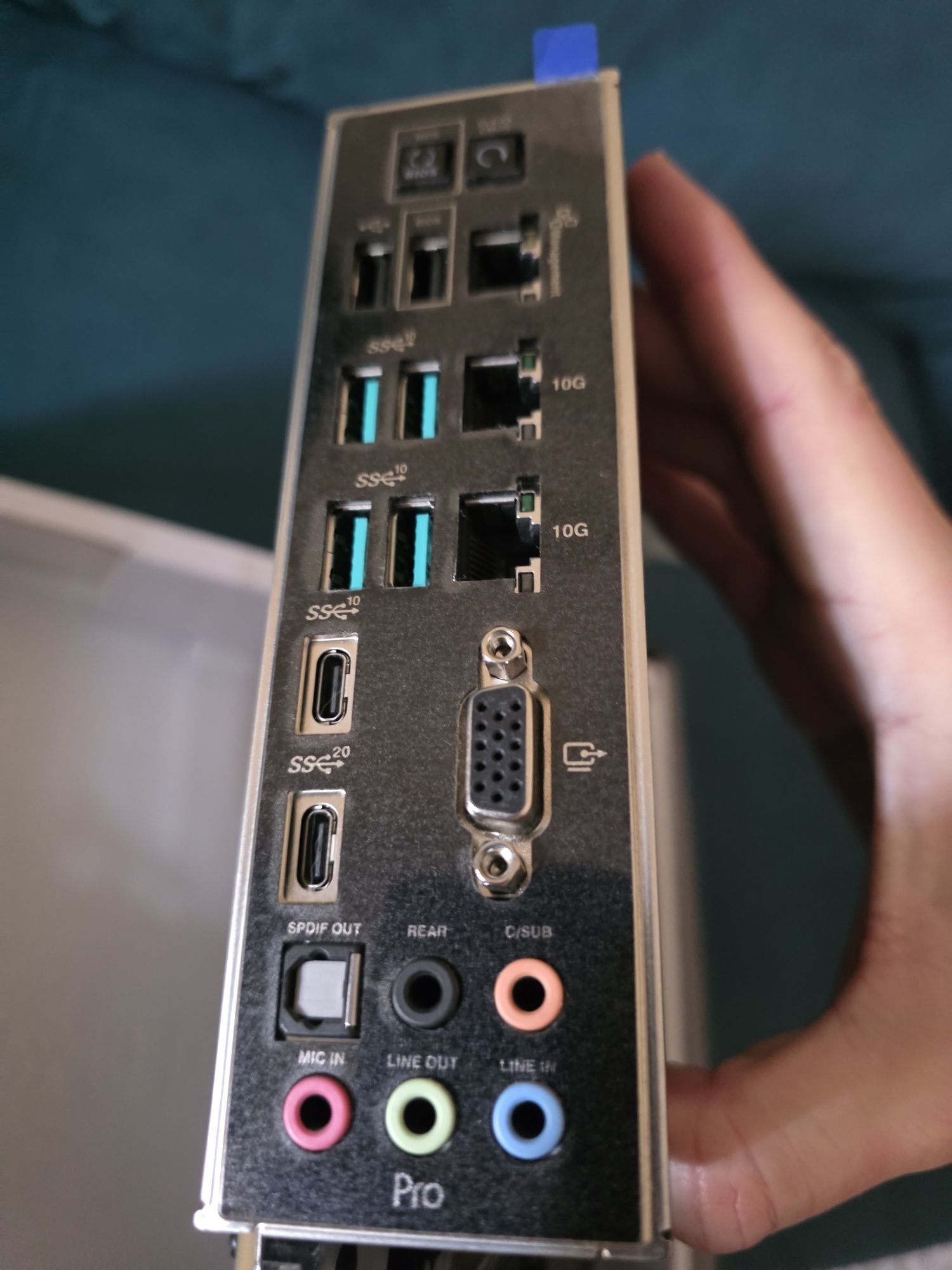

Back Panel I/O
USB 1x USB-C (USB 3.2 Gen 2x2)
1x USB-C (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 2.0)
Thunderbolt No
Display 1x VGA
Audio 5x 1/8" / 3.5 mm
1x S/PDIF
Ethernet / Controller 2x 10GbE
1x Gigabit
Buttons BIOS Flashback, Clear CMOS
Memory
Memory Slots 8x 288-Pin
Memory Support DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800 MT/s
Maximum Capacity 2048 GB
Channel Architecture Octa Channel
Storage Expansion
SATA 8x SATA III
Storage Slots 2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
Internal I/O
Expansion Slots 6x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode)
USB 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling 2x 4-Pin CPU
5x 4-Pin System
1x Thermal Sensor
Liquid Cooling 1x 4-Pin Pump
Power Connectors 2x 24-Pin Mainboard
4x 8-Pin ATX
1x 8-Pin ATX
1x 6-Pin ATX
Security Chassis Intrusion, TPM Header
Diagnostics LN Mode, ReTry, Safe Boot, Start
Add-On 1x Intel VROC
Legacy 1x Parallel
BIOS
ROM 512 Mb
Front Panel I/O
Front Panel I/O USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
Audio
Audio Codec Realtek S1220A (7.1-Channel)
DAC No
Wireless
Wi-Fi Yes
Bluetooth No
